PeopleTools 8.52 Application Engine sets MODULE and ACTION

I have written and spoken often about the huge importance of instrumentation in an application. PeopleSoft introduced internal instrumentation to PeopleTools 8.44 for its own Performance Monitor that works on any platform. Since PeopleTools 7.53, when running on an Oracle database, PeopleTools also calls the Oracle supplied package dbms_application_info package to set the module and action for the session. The values set were not particularly useful, so I wrote a PL/SQL package (psftapi) and trigger to set the module and action attributes when a process started.

In PeopleTools 8.50 this instrumentation was enhanced to set module and action to the component and page name in the PIA. These values appear in Oracle Enterprise Manager and Active Session History (ASH). They can be used to profile components.

Now, in PeopleTools 8.52 Application Engine has been enhanced to set the action to the full Application Engine step name.

To illustrate what happens, I have produced an Oracle Extended SQL Trace for the process, but I have shown only the lines in a SQL Trace file with 3 asterisks. So you can see MODULE and ACTION being set (and some other timestamp information). The lines in italic were emitted when module and action were set by my psftapi package, in which I simply set the MODULE to the Application Engine program name.
*** 2012-11-22 21:47:38.282
*** SESSION ID:(7.2237) 2012-11-22 21:47:38.282
*** CLIENT ID:(PS) 2012-11-22 21:47:38.282
*** SERVICE NAME:(HCM91) 2012-11-22 21:47:38.282
*** MODULE NAME:(PSPMCSOSUM) 2012-11-22 21:47:38.282
*** ACTION NAME:(PI=867:Processing) 2012-11-22 21:47:38.282
*** MODULE NAME:(PSAE.PSPMCSOSUM.1448) 2012-11-22 21:47:38.419
*** ACTION NAME:(PSPMCSOSUM) 2012-11-22 21:47:38.419
*** ACTION NAME:(PSPMCSOSUM.MAIN.STATS.S) 2012-11-22 21:47:38.420
*** 2012-11-22 21:47:38.588
*** ACTION NAME:(PSPMCSOSUM.MAIN.CTL.P) 2012-11-22 21:47:38.919
*** ACTION NAME:(PSPMCSOSUM.MAIN.SELECT.C) 2012-11-22 21:47:38.937
*** ACTION NAME:(PSPMCSOSUM.GETCNT.CNT.P) 2012-11-22 21:47:38.963
…
*** ACTION NAME:(PSPMCSOSUM.MAIN.SELECT.C) 2012-11-22 21:48:15.168
*** ACTION NAME:(PSPMCSOSUM.GETCNT.CNT.P) 2012-11-22 21:48:15.168
*** ACTION NAME:(PSPMCSOSUM.MAIN.Close.P) 2012-11-22 21:48:15.197
*** ACTION NAME:(PI=867:Success) 2012-11-22 21:48:15.201

Application Engine also sets the MODULE attribute.  In the above example it was set to PSAE.PSPMCSOSUM.1448.  The string is composed of three parts.
  • PSAE indicates that it was running Application Engine. It sets the same value for both stand-alone and Tuxedo server Application Engine processes.
  • PSPMCSOSUM was the name of the Application Engine Program
  • 1448 was the operating system process ID of the Application Engine process.  This value is recorded in the column SESSIONIDNUM on the table PSPRCSQUE.
The inclusion of the SESSIONIDNUM is useful because it is possible to determine the process instance.  If you have multiple instances of the same Application Engine program running concurrently, you can work out which ASH samples correspond to which process instance by matching the session ID.

SELECT  r.prcsinstance, h.module, h.action, sum(1) ash_secs
FROM v$active_Session_history h
, psprcsque q
, psprcsrqst r
WHERE r.prcsinstance = q.prcsinstance
AND h.module = 'PSAE.'||q.prcsname||'.'||q.sessionidnum
AND h.sample_time BETWEEN r.begindttm AND NVL(r.enddttm,SYSDATE)
and r.prcsinstance = 867
GROUP BY r.prcsinstance, h.module, h.action
ORDER BY ash_secs DESC
/

PRCSINSTANCE MODULE               ACTION                    ASH_SECS
------------ -------------------- ------------------------- --------
         867 PSAE.PSPMCSOSUM.1448 PSPMCSOSUM.GETCNT.CNT.P          7
         867 PSAE.PSPMCSOSUM.1448 PSPMCSOSUM.MAIN.STATS.S          1

Unfortunately, this change to MODULE also means that it is no longer possible to enable trace by setting a watchpoint (as I blogged previously) now does not work with Application Engine because it is not possible to predict the value of the SESSIONIDNUM in MODULE!

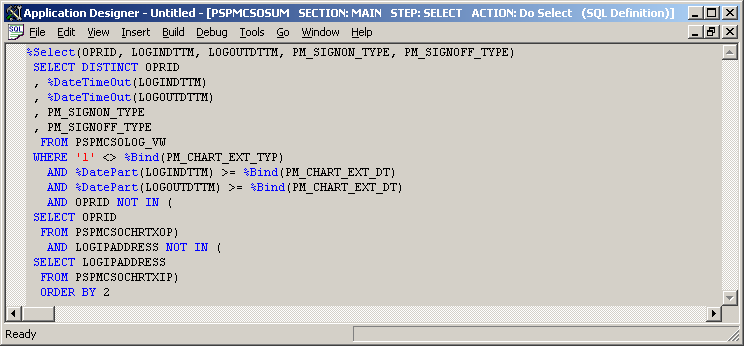

I am testing with 8.52.12 and have found a significant problem. Application Engine doesn't set the action on DO SELECT statements. The first statement in the trace extract below does come from PSPMCSOSUM.MAIN.CTL PeopleCode, however, the second SQL statement actually comes from PSPMCSOSUM.MAIN.SELECT.D, but the absence of another action line would lead you to believe the statement came from the preceding PeopleCode step.
*** ACTION NAME:(PSPMCSOSUM.MAIN.CTL.P) 2012-11-22 21:47:38.919
WAIT #0: nam='SQL*Net message to client' ela= 0 driver id=1413697536 #bytes=1 p3=0 obj#=-40016373 tim=257220814597
WAIT #0: nam='SQL*Net message from client' ela= 740 driver id=1413697536 #bytes=1 p3=0 obj#=-40016373 tim=257220815371
CLOSE #348647416:c=0,e=33,dep=0,type=1,tim=257220815447
=====================
PARSING IN CURSOR #348528704 len=98 dep=0 uid=45 oct=3 lid=45 tim=257220815496 hv=1424819941 ad='7ff2559e550' sqlid='98af7ppafu1r5'
END OF STMT
PARSE #348528704:c=0,e=35,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=1,plh=1148792852,tim=257220815496
EXEC #348528704:c=0,e=30,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=1,plh=1148792852,tim=257220815572
WAIT #348528704: nam='SQL*Net message to client' ela= 1 driver id=1413697536 #bytes=1 p3=0 obj#=-40016373 tim=257220815612
FETCH #348528704:c=0,e=2824,p=0,cr=16,cu=0,mis=0,r=1,dep=0,og=1,plh=1148792852,tim=257220818462
STAT #348528704 id=1 cnt=1 pid=0 pos=1 obj=0 op='SORT AGGREGATE (cr=16 pr=0 pw=0 time=2828 us)'
STAT #348528704 id=2 cnt=3075 pid=1 pos=1 obj=228740 op='INDEX FULL SCAN PS_PSPMCSO_CHART (cr=16 pr=0 pw=0 time=333 us cost=0 size=13 card=1)'
WAIT #348528704: nam='SQL*Net message from client' ela= 123 driver id=1413697536 #bytes=1 p3=0 obj#=-40016373 tim=257220818671
FETCH #348528704:c=0,e=1,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=0,plh=1148792852,tim=257220818696
WAIT #348528704: nam='SQL*Net message to client' ela= 0 driver id=1413697536 #bytes=1 p3=0 obj#=-40016373 tim=257220818714
WAIT #348528704: nam='SQL*Net message from client' ela= 702 driver id=1413697536 #bytes=1 p3=0 obj#=-40016373 tim=257220819434
CLOSE #349389936:c=0,e=16,dep=0,type=1,tim=257220819496
=====================
PARSING IN CURSOR #349702624 len=555 dep=0 uid=45 oct=3 lid=45 tim=257220819548 hv=1888777338 ad='7ff2559ce90' sqlid='5phgqq9s98x3u'
SELECT DISTINCT OPRID , TO_CHAR(CAST((LOGINDTTM) AS TIMESTAMP),'YYYY-MM-DD-HH24.MI.SS.FF') , TO_CHAR(CAST((LOGOUTDTTM) AS TIMESTAMP),'YYYY-MM-DD-HH24.MI.SS.FF') , PM_SIGNON_TYPE , PM_SIGNOFF_TYPE FROM PSPMCSOLOG_VW WHERE '1' <> '2' AND TO_DATE(TO_CHAR(LOGINDTTM,'YYYY-MM-DD'),'YYYY-MM-DD') >= TO_DATE('2005-07-06','YYYY-MM-DD') AND TO_DATE(TO_CHAR(LOGOUTDTTM,'YYYY-MM-DD'),'YYYY-MM-DD') >= TO_DATE('2005-07-06','YYYY-MM-DD') AND OPRID NOT IN ( SELECT OPRID FROM PSPMCSOCHRTXOP) AND LOGIPADDRESS NOT IN ( SELECT LOGIPADDRESS FROM PSPMCSOCHRTXIP) ORDER BY 2
END OF STMT
PARSE #349702624:c=0,e=35,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=1,plh=4226533831,tim=257220819547
EXEC #349702624:c=0,e=47,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=1,plh=4226533831,tim=257220819669
WAIT #349702624: nam='SQL*Net message to client' ela= 1 driver id=1413697536 #bytes=1 p3=0 obj#=-40016373 tim=257220819723
WAIT #349702624: nam='SQL*Net more data to client' ela= 76 driver id=1413697536 #bytes=8145 p3=0 obj#=-40016373 tim=257220831271
FETCH #349702624:c=15600,e=11621,p=0,cr=214,cu=0,mis=0,r=201,dep=0,og=1,plh=4226533831,tim=257220831375
WAIT #349702624: nam='SQL*Net message from client' ela= 988 driver id=1413697536 #bytes=1 p3=0 obj#=-40016373 tim=257220832412
WAIT #0: nam='SQL*Net message to client' ela= 2 driver id=1413697536 #bytes=1 p3=0 obj#=-40016373 tim=257220832481
WAIT #0: nam='SQL*Net message from client' ela= 40 driver id=1413697536 #bytes=1 p3=0 obj#=-40016373 tim=257220832541
*** ACTION NAME:(PSPMCSOSUM.MAIN.SELECT.C) 2012-11-22 21:47:38.937

However, MAIN.SELECT.D duly appears in the AE batch timings report.


                               C o m p i l e    E x e c u t e    F e t c h        Total
SQL Statement                  Count   Time     Count   Time     Count   Time     Time
------------------------------ ------- -------- ------- -------- ------- -------- --------
…
AE Program: PSPMCSOSUM

MAIN.CTL.D                           1      0.0       1      0.0       2      0.0      0.0
MAIN.SELECT.D                        1      0.0       1      0.0     556      0.0      0.0
MAIN.STATS.S                         1      0.0       1      0.5       0      0.0      0.5
…

This is a serious problem  If you profile the top SQL statements in an Application Engine (using either ASH as I have done above, or by profiling a trace file and looking for the top SQL statement by searching through the raw trace file) it will lead you to the wrong conclusion!  Time spent in PSPMCSOSUM.MAIN.SELECT.D will be accounted as having been spent in PSPMCSOSUM.GETCNT.CNT.P.  It is not until you look for the specific SQL statement in Application Designer that you realise that the source code doesn't match the instrumentation.

Nevertheless, this instrumentation is a very welcome and significant improvement for Application Engine. It will help to localise performance problems. However, until the ommisions are fixed, you will need to be aware of their implications and avoid falling into the traps.

My thanks to Wolfgang Breitling for telling me about the feature.
